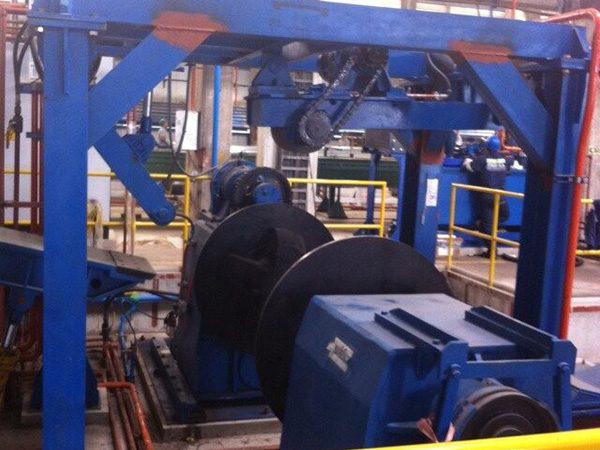

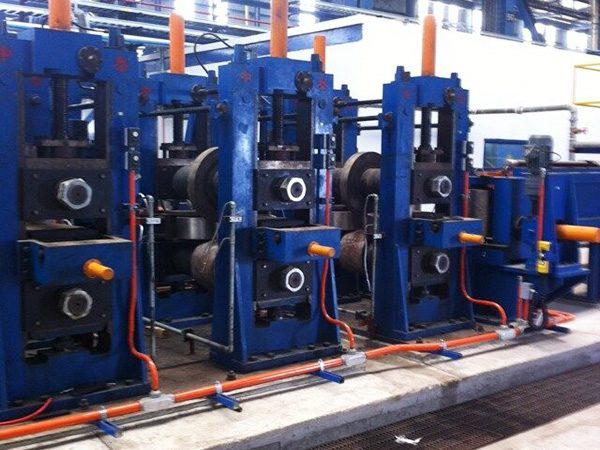

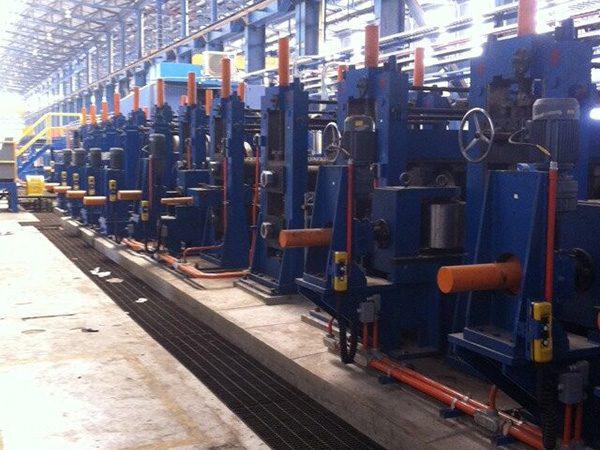

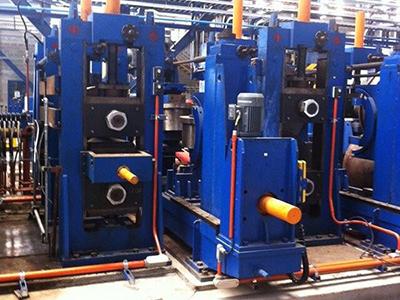

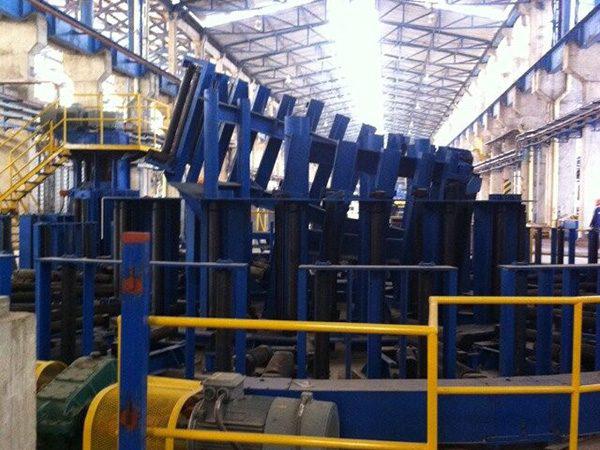

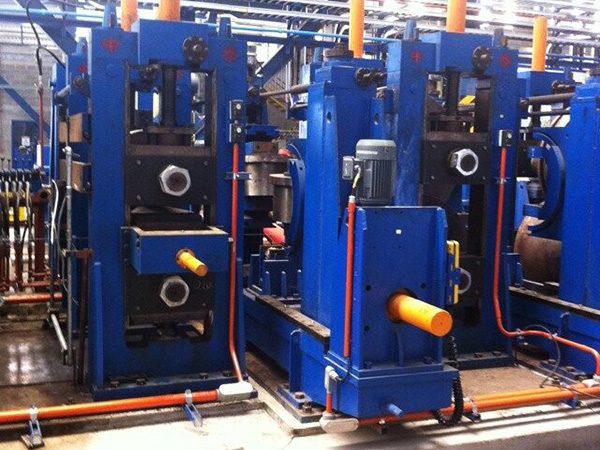

ERW335 ERW Carbon Steel Tube Mill
ERW335 electric resistance welded carbon steel pipe production line
|Product & Yield||Round Pipe||140mm-325mm Thickness: 4.0mm-12.7mm|

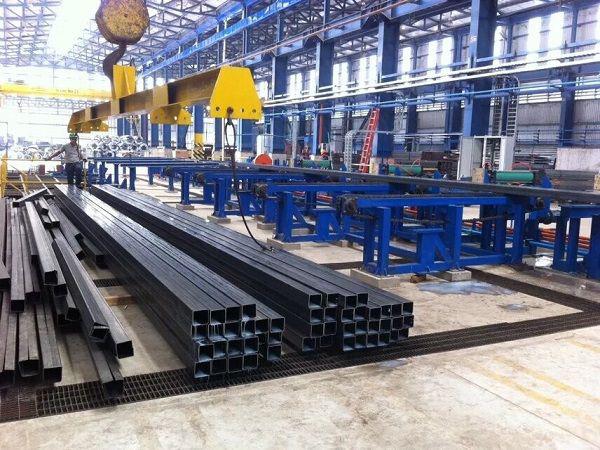

|Square & rectangle tube||90mm×90mm -250mm×250mm Thickness: 4.0mm-12.0mm|
|Length||6m-12m Length Tolerance: ±3mm|
|Production Speed||40 m/min|
|Consumption||Mill installed capacity||430 kw|
|Line Area||130m(length) ×11m (width)|
|Raw Material||Carbon Steel coil||Carbon steel coil Q235B(ASTM GR·D,σs 230)|
|Width||280mm-690mm Thickness: 2.0mm-8.0mm|
|Coil OD||Max. 1800mm|
- Rolls cost roughly 60% less than other comparable products.
- One set of rollers is capable of pipe production in a variety of sizes using direct square forming technology.
- Electric control and automatic adjustment reduce roller changing time in an accurate, fast manner.
