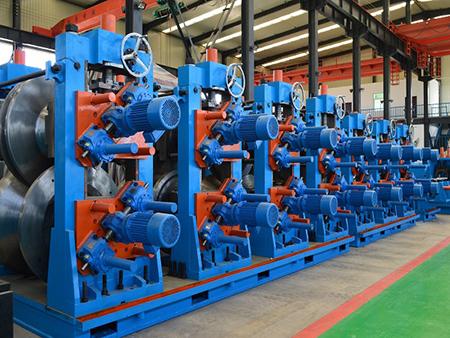

Square Pipe Mill with Direct Square Forming Process
The direct square forming process used by this equipment allows for the production of square pipes directly, meaning you can manufacture square or rectangular pipe from carbon steel strips instead of round tubes. Utilizing a square pipe mill with a direct square forming process, your production plant will be forming square pipe/tube with greater efficiency.
Benefits of direct square to square pipe mill:
- Compared to reshaping round pipe into square pipe, this equipment can achieve greater dimensional accuracy particularly for smaller pipes.
- The width of the steel strip is reduced by 2.4-3% compared to producing round pipe.
- Multi-point bending eliminates side abrasion and axial force. It also helps to shorten the forming process without compromising on quality as well as reducing roller abrasion and power waste.
- Through the application of different types of rollers on the mill section, it can produce various types of square and rectangle pipes, and helps to simplify the storage of rollers which lowers the cost by about 80%.
| Model | Products Range | Thickness(mm) | Speed(m/min) |
| LW600 | 60x60-150x150 70x50-200x100 | 1.5-8 | 20-70 |
| LW800 | 70x70-200x200 90x50-250x150 | 2-10 | 20-60 |
| LW1000 | 90x90-250x250 120x60-300x200 | 3-12.7 | 15-50 |
| LW1200 | 120x120-300x300 140x100-400x200 | 4-14 | 10-40 |
| LW1600 | 170x170-400x400 200x150-500x300 | 4-16 | 10-30 |
| LW2000 | 200x200-500x500 250x150-600x400 | 4-20 | 8-20 |
Note: We can design and manufacture pipe mills according to your requirements.
Project

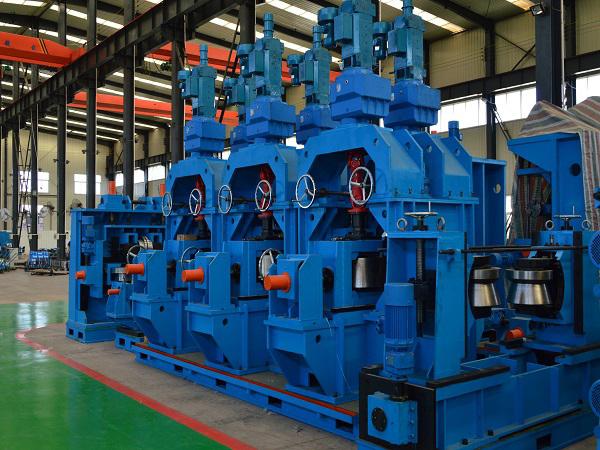

300x300x16 Direct Square Forming Pipe Mil
Time: May 2015
Description: This is a complete pipe production line designed and manufactured for Hebei Jingye Group. Zhongtai Group has provided 4 high frequency welded pipe manufacturing lines for them.
