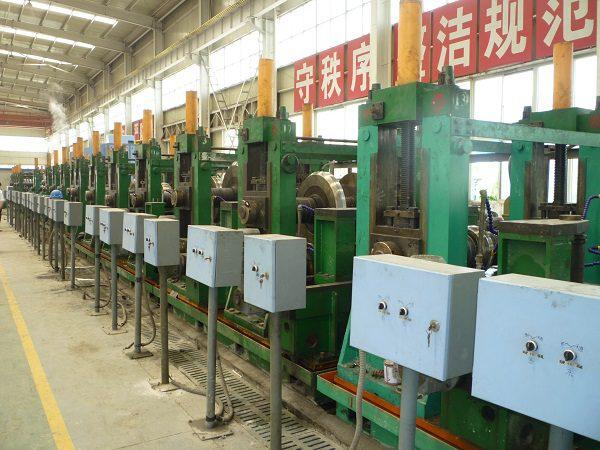

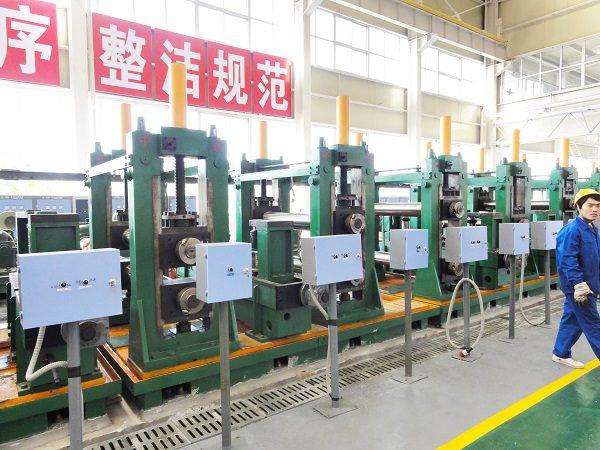

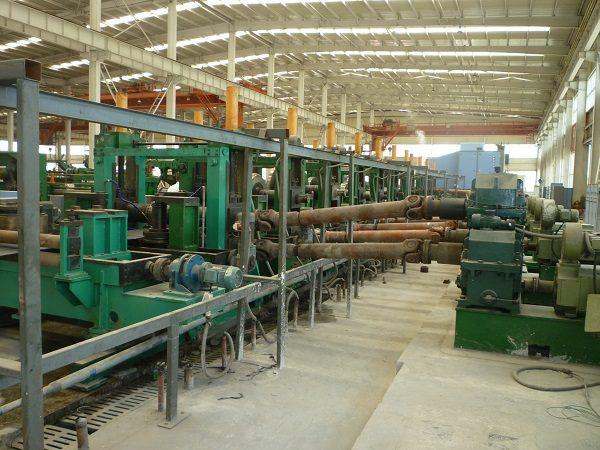

Cold Roll Forming Line
Zhongtai Group provides cold roll forming lines that help support metallurgy, construction, transportation, machinery, and vehicle industries. These complete roll forming lines are suitable for steel strips and adopt an automatic control system and cold rolled section forming technology. The line is capable of producing structural steel from 10x10mm to 550x550mm and with a maximum thickness up to 22mm. The equipment also delivers high accuracy.
| Model | Strip width mm | Size mm | Thickness mm |
| Lw100 | 40-100 | 10x10-25x25 | 0.5-2.0 |
| LW200 | 80-200 | 20x20-50x50 | 1.0-3.0 |
| LW400 | 200-400 | 50x50-100x100 | 2.0-5.0 |
| LW600 | 240-600 | 60x60-150x150 | 2.0-7.0 |
| LW800 | 320-800 | 80x80-200x200 | 2.5-10.0 |
| LW1050 | 400-1050 | 100x100-250x250 | 3.0-12.7 |
| LW1250 | 480-1250 | 120x120-300x300 | 3.0-14.0 |
| LW1400 | 600-1400 | 150x150-350x350 | 4.0-16.0 |
| LW1600 | 800-1600 | 200x200-400x400 | 6.0-18.0 |
| LW2000 | 1000-2000 | 250x250-500x500 | 6.0-20.0 |
| LW2200 | 1100-2200 | 280x280-550x550 | 6.0-22.0 |
Note: We can design and manufacture pipe mills according to your requirements.
