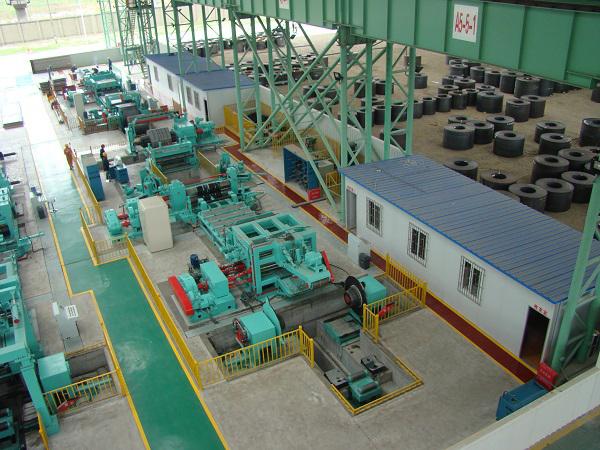

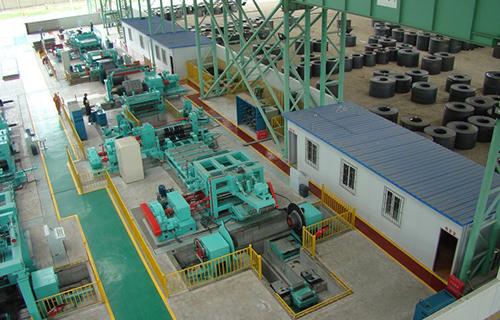

Slitting Line

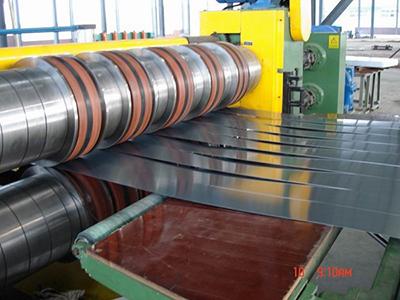

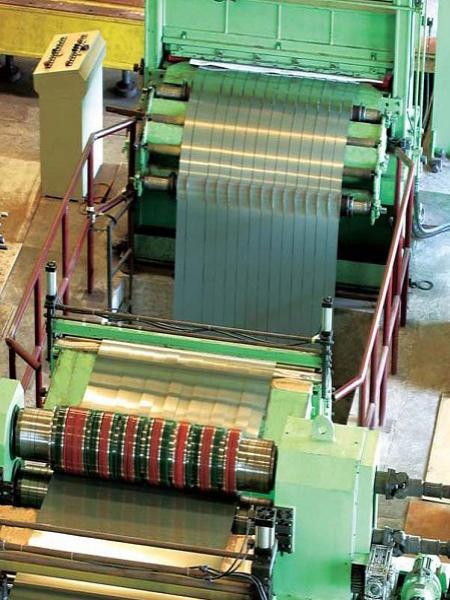

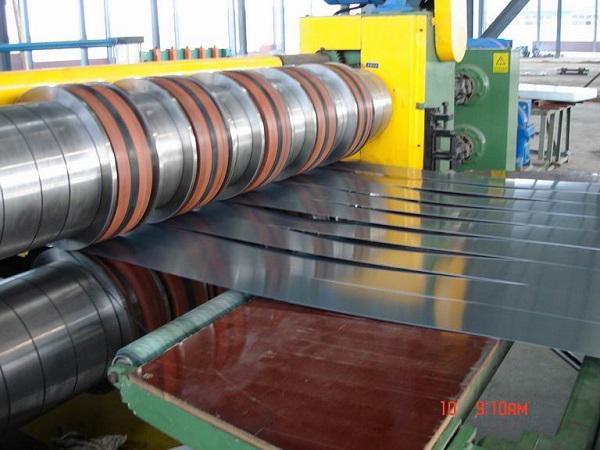

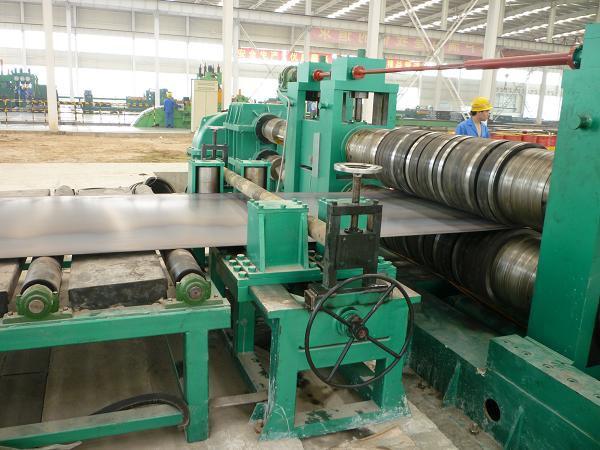

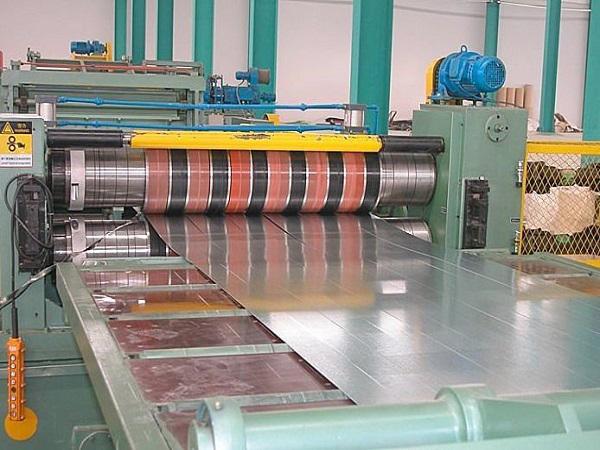

This slitting line is highly automated production equipment designed to slit wide steel strip into desired widths before recoiling them for a variety of weld pipe and cold rolled structural steel production operations.
The Process of Slitting Line
Loading Coil → Uncoiling → Leveling → Cutting the Head and End → Circle Shear → Slitter Edge Recoiling → Accumulator → Steel Head and End Bending → Separating → Tensioner → Coiling Machine
| Model | Roll Width (mm) | Thickness (mm) | Cutting Speed (m/min) |
| ZJ1000 | 500-1000 | 0.18-1.5 | 80-100 |
| ZJ1250 | 900-1250 | 0.5-2 | 50-90 |
| ZJ1500 | 1000-1500 | 1.8-4 | 40-80 |
| ZJ1600 | 1000-1600 | 2-6 | 30-70 |
| ZJ1600 | 1000-1600 | 4-10 | 20-70 |
| ZJ1600 | 1000-1600 | 4-12.7 | 20-60 |
| ZJ1800 | 1000-1800 | 5-14 | 15-60 |
| ZJ2000 | 1200-2000 | 6-16 | 12-50 |
Note: We can design and manufacture pipe mills according to your requirements.
