Pipe Mill with ZTF Forming Process
ZTF forming is a pipe production process specially developed by Zhongtai Group. The process is designed to minimize the time it takes to complete round pipe production, lowering your operating costs. A tube production line using the ZTF forming process does not require the changing of any rollers in the breakdown section, lowering roll costs by about 60%.
- uring pipe and tube production, you do not need to change any molds in the breakdown section, leading to a 60% reduction in roll costs.
- It allows for the production of pipes with a variety of diameters through simple adjustment.
- Reduction in manpower
- Suitable X70 and N80 grade steel strips.
- The friction between the steel strip and rollers is reduced, extending the useful lifetime of the rollers.
- Rollers are easy to adjust.
ERW carbon steel pipe mills with our ZTF forming technology can produce pipes in a wide OD range from 48mm to 720mm and max. wall thickness up to 22mm.
|Model||Round pipe||Square pipe||Thickness||Working speed|
|Rolls in Breakdown Section||Basic Use||Fully Common Use||Fully Common Use||Fully Common Use|
|Structure and Adjustment of Rotating Horizontal Rolls||No Horizontal Rolls||Manually adjust the rotating, opening and closing, and lifting of the upper and lower rolls. The opening and closing of the shaft as well as the quick release and adjustable mats are manually adjusted.||Electric adjustment of the rotating, opening, closing and lifting of upper rolls. As well as the tilting of lower rolls and opening and closing on the roll seats. Electric adjustment of the space between rolls which is controlled by screw.||Electric adjustment of the rotating, opening, closing, and lifting of the upper rolls. Computer adjustment of the tilting of the lower rolls opening and closing on the roll seats,.|
|Structure and Adjustment of Swiveling Vertical Rolls||Manually control the adjustment for the opening and closing, lifting and rotating of the special curve rolls.||Manually or electronically control the adjustment for the opening and closing, lifting, and rotating of the special curve rolls.||Electric control for the adjustment, opening, closing, lifting, and rotating of the special curve rolls.||Computer control for the adjustment for the opening and closing, lifting and rotating of the special curve rolls.|
|Adjustment of Other Rolls in the Rough Forming Section||Rollers will be replaced when producing pipes of different sizes.||The rolls open and close on the shaft to manually adjust the quick release and adjustable mats as well as the lifting of the upper rolls.||The rolls open and close on the shaft or roll seats. Manually adjust the space between rolls which is controlled by screw for the lifting of the upper rolls.||The rolls open and close on the shaft or roll seat. Electric adjustment of the space between rolls which is controlled by screw. Computer adjustment of the lifting of the upper rolls.|
|Micro-adjustment Device for Side Vertical Rolls in Final Forming and Sizing Section||N/A||N/A||Yes||Yes|
|Adjustment for Rolls Position||Manual||Manual||Manual||Computer|
|Request for Electronic Control||Low||Low||High||Higher|
|Accuracy of Rolls Position Adjustment||High||High||Higher||Highest|
|Operation Site of Rolls position Adjustment||Inside the stands||Inside the stands||Outside the stands||Outside the stands|
|Deformation of the Pipe Blank Edge||Good||Good||Better||Better|
|The Formation for High Precision, High Steel Grade and Thick Wall Pipe||Good||Better||Best||Best|
|Accuracy of Pipe||High||High||Higher||Higher|
|Labor Intensity||High||High||Low||Very low|
|Time for Replacing Rolls||Long||Short||Short||Shortest|
Note: We can design and manufacture pipe mills according to your requirements.

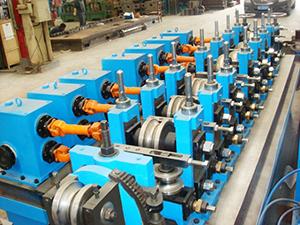

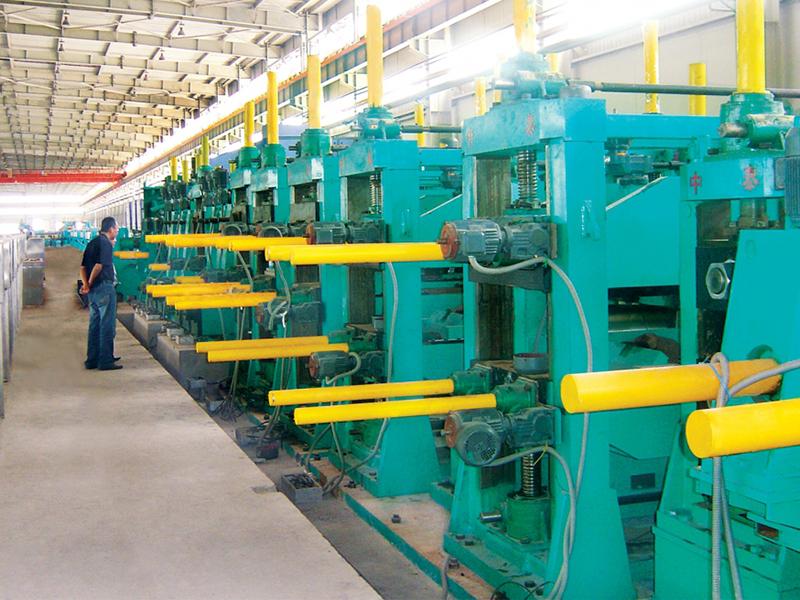

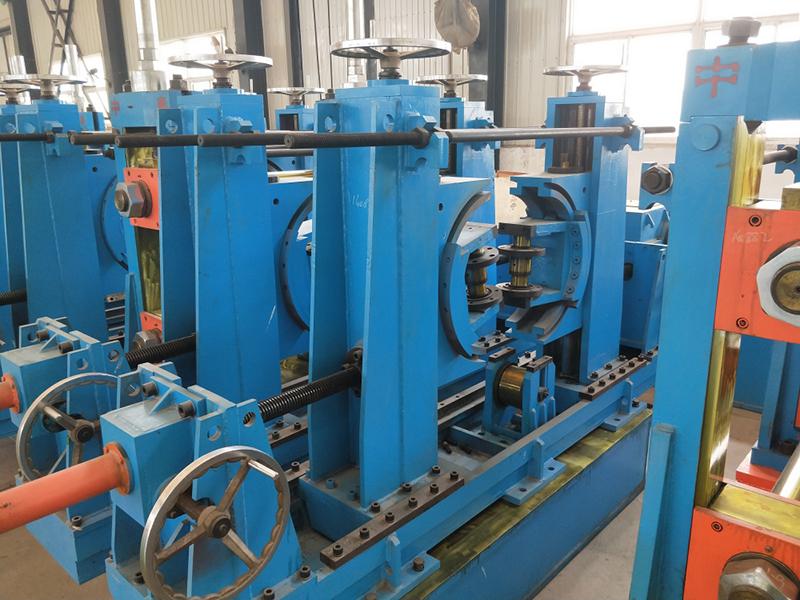

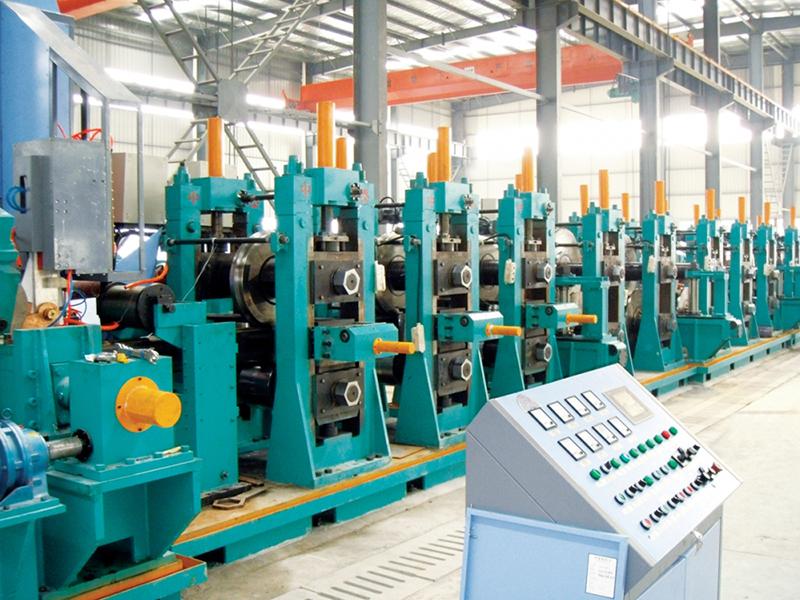

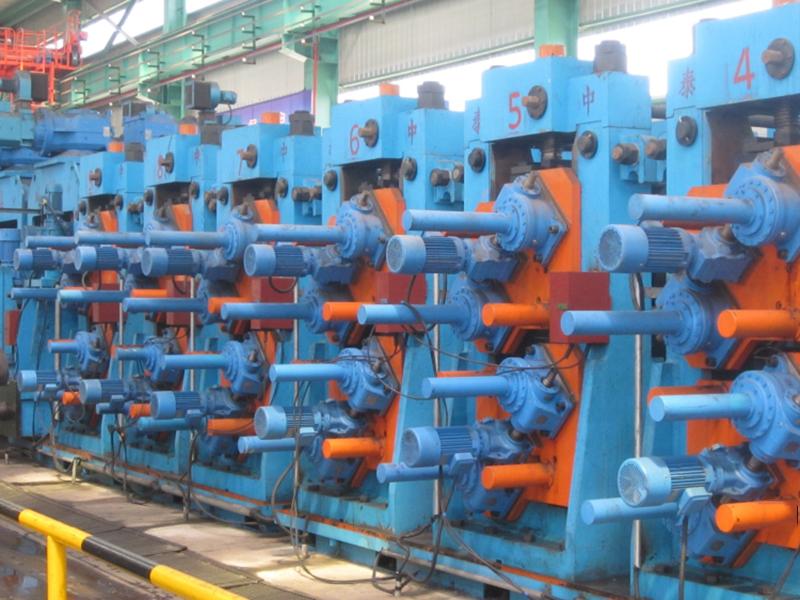

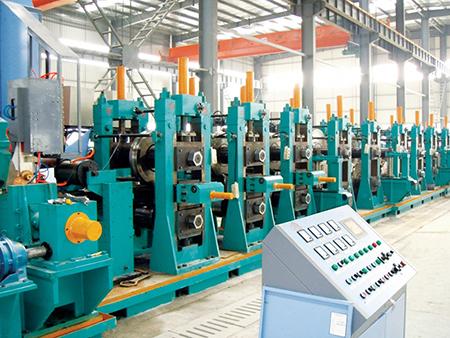

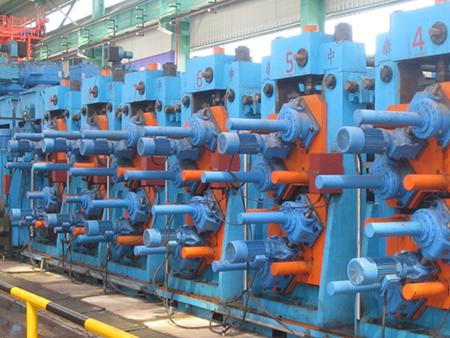

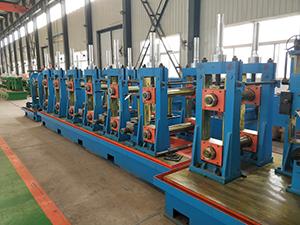

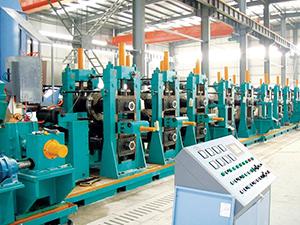

ERW pipe mill with ZTF forming process
Description: This pipe manufacturing line features the manual control of the opening, closing, lifting, and rotating of the special curve rolls.
