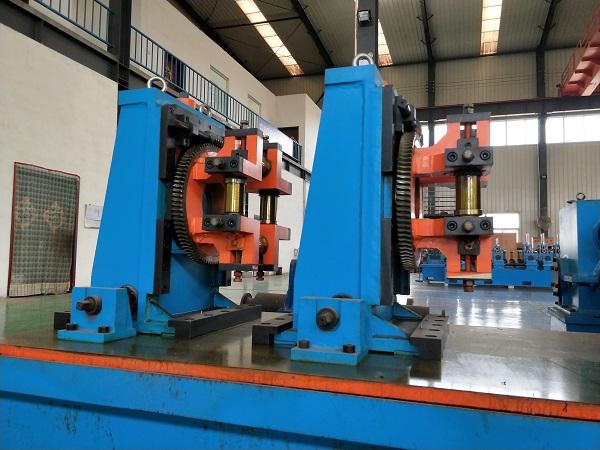

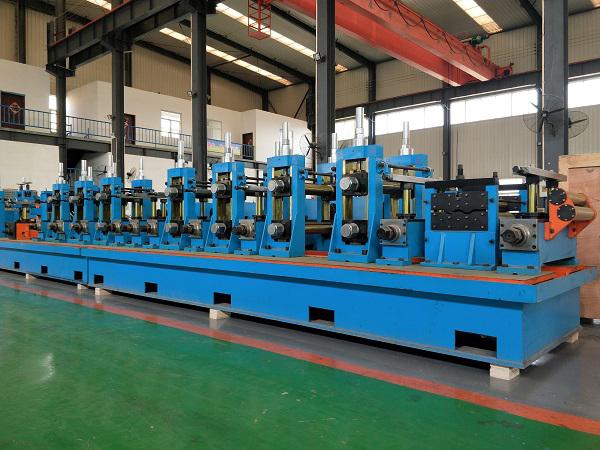

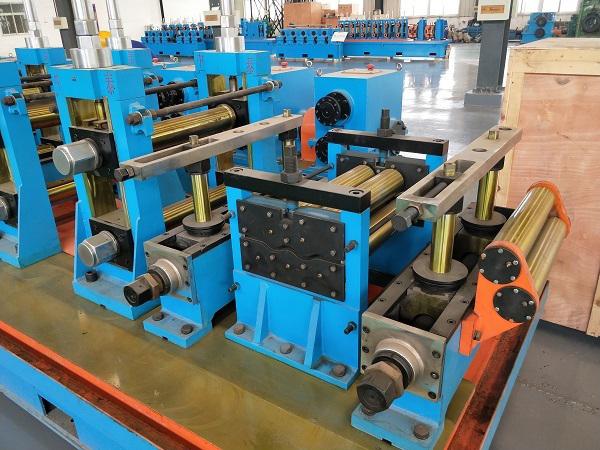

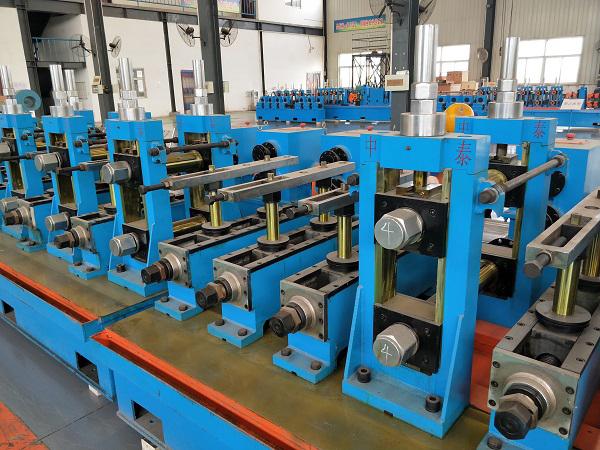

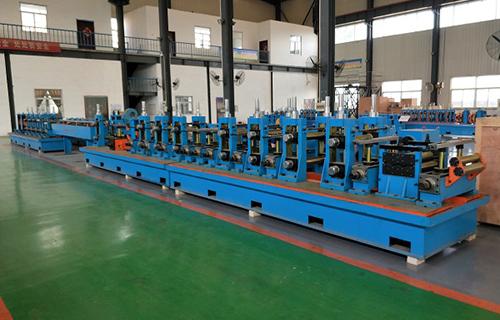

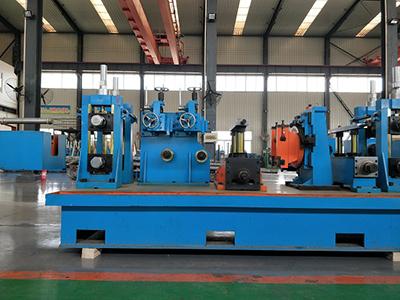

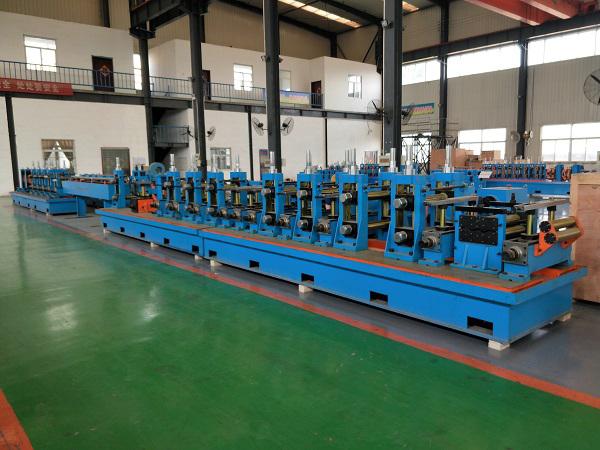

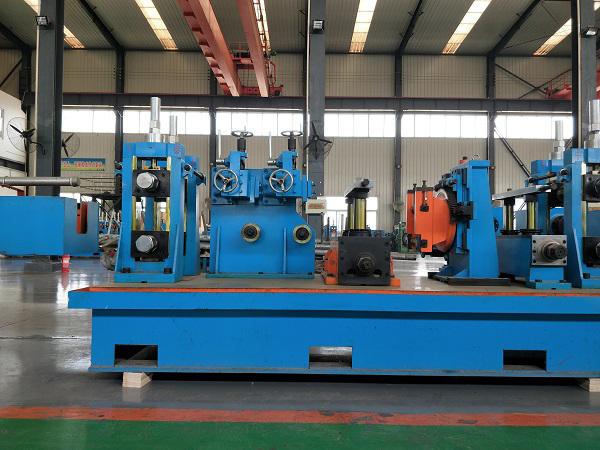

ERW114 ERW Carbon Steel Tube Mill
ERW114 electric resistance welded carbon steel pipe production line
| Product & Yield | Round Pipe | 48mm-114mm Thickness:1.5mm-4.5mm |
| Square & rectangle tube | 40mm×40mm -90mm×90mm Thickness:1.5mm-4.0mm | |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 20-65 m/min | |
| Production capacity | 30,000ton/year | |
| Consumption | Mill installed capacity | 160 kw |
| Line Area | 78m(length) ×6m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 150mm-360mm Thickness: 1.5mm-4.5mm | |
| Coil ID | 550-610mm | |
| Coil OD | Max 1600mm | |
| Coil Weight | 4.0t |
Advantages
- Rolls cost roughly 60% less than other comparable products.
- One set of rollers is capable of pipe production in a variety of sizes using direct square forming technology.
- Electric control and automatic adjustment reduce roller changing time in an accurate, fast manner.
