High Frequency Welded Pipe Mill

Our high frequency(HF) welded pipe mill has everything you need to produce high-quality HF welded pipes in a wide range of outer diameters from 8mm to 89mm and with a maximum wall thickness of 4.5mm.

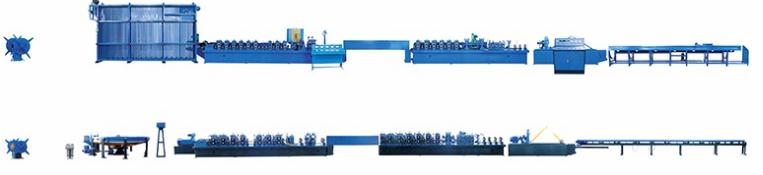

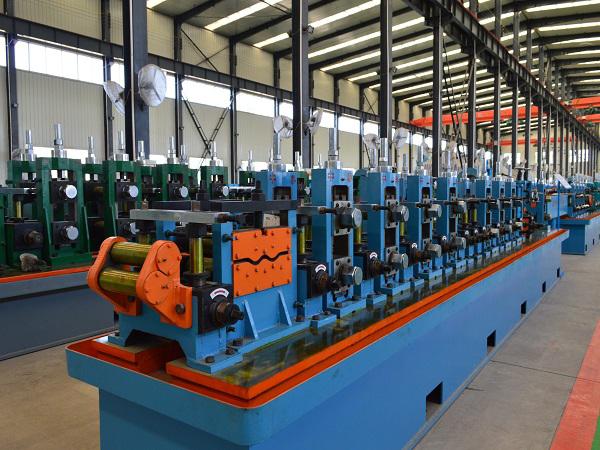

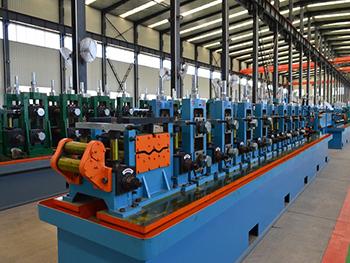

The complete HF welded pipe mill is made up of an entry section, mill section, cut-off section and finishing section, the steel pipe manufacturing process including:

Scrolling Up→ Uncoiling → Shear and Welding→ Spiral Accumulator→ Forming→ HF induction Welding→ External Burr Removing→ Cooling → Sizing→ Flying Saw → Run Out Table →Inspecting→ Packing→ Warehouse

Features

Suitable for processing carbon steel
Round and rectangular pipes can be produced with this equipment
Production speed can reach up to 120m/min
Diameter error tolerance is within 0.5/100 of the pipe’s OD

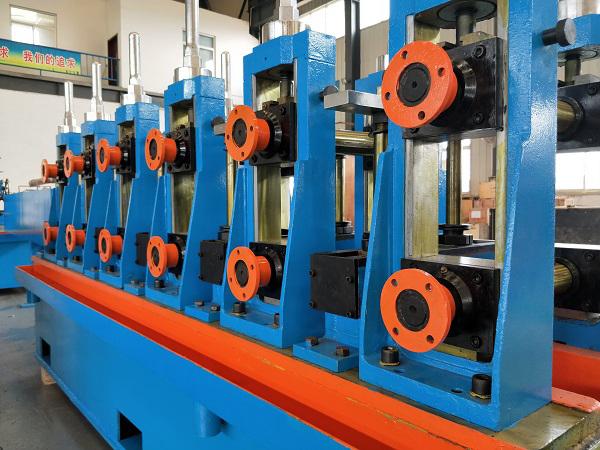

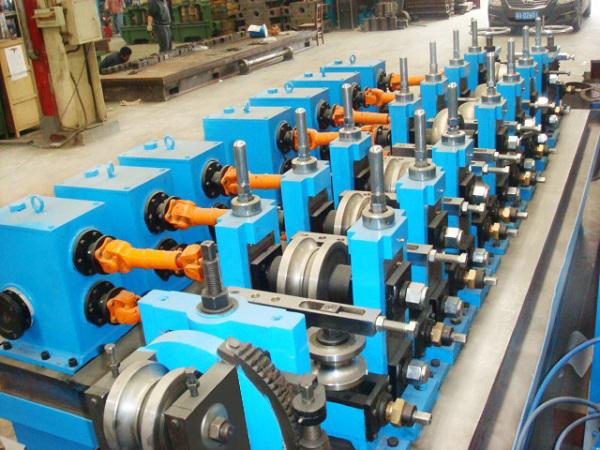

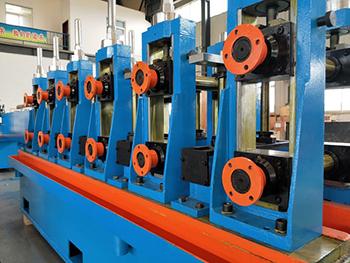

Forming process

Round Pipe	Cold roll forming process	Good roller design
Square & Rectangular Pipe	General round-to-square process	Stable forming process

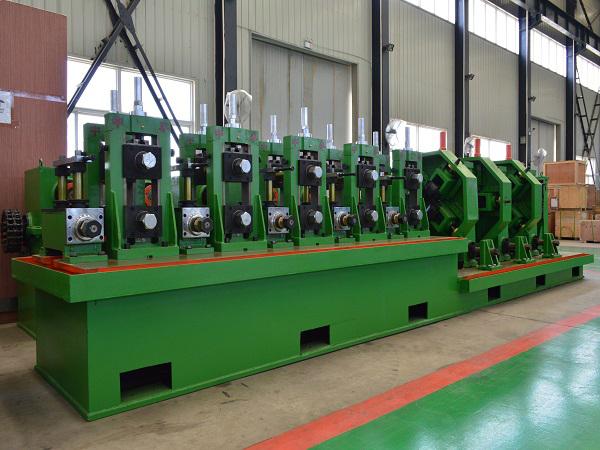

Square & Rectangular Pipe	Round to square with turkshead unit	Good pipe quality, achieve the same wall thickness as that of round pipe

Model Selection

Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15x15	0.3-1.5	120
ERW32	Ф10-Ф32	10x10-25x25	0.5-2.0	120
ERW50	Ф20-Ф50	15x15-40x40	0.8-3.0	120
ERW76	Ф32-Ф76	25x25-60x60	1.2-4.0	120
ERW89	Ф42-Ф89	35x35-70x70	1.5-4.5	110
ERW114	Ф48-Ф114	40x40-90x90	1.5-4.5	65
ERW140	Ф60-Ф140	50x50-110x110	2.0-5.0	60
ERW165	Ф76-Ф165	60x60-130x130	2.0-6.0	50
ERW219	Ф89-Ф219	70x70-170x170	2.0-8.0	50
ERW273	Ф114-Ф273	90x90-210x210	3.0-10.0	45
ERW325	Ф140-Ф325	110x110-250x250	4.0-12.7	40
ERW377	Ф165-Ф377	130x130-280x280	4.0-14.0	35
ERW406	Ф219-Ф406	170x170-330x330	6.0-16.0	30
ERW508	Ф273-Ф508	210x210-400x400	6.0-18.0	25
ERW660	Ф325-Ф660	250x250-500x500	6.0-20.0	20
ERW720	Ф355-Ф720	300x300-600x600	6.0-22.0	20

Note: We can design and manufacture pipe mills according to your requirements.
