ERW660 ERW Carbon Steel Tube Mill

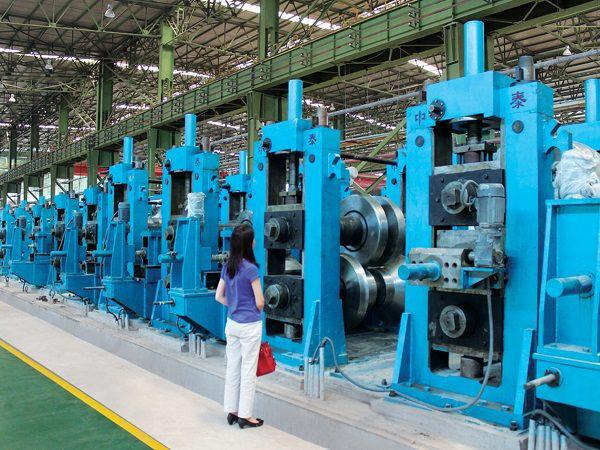

ERW660 electric resistance welded carbon steel pipe production line
| Product & Yield | Round Pipe | 325mm-660mm Thickness: 6.0mm-20.0mm |
| Square & rectangle tube | 250mm×250mm -500mm×500mm Thickness:6.0mm-20.0mm | |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 20 m/min | |
| Production capacity | 180,000ton/year | |
| Consumption | Mill installed capacity | 1200 kw |
| Line Area | 350m(length) ×35m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon steel coil & steel plate Q235B(ASTM GR·D,σs 230) & High-strength steel | |
Advantages
- Rolls cost roughly 60% less than other comparable products.
- One set of rollers is capable of pipe production in a variety of sizes using direct square forming technology.
- Steel coil and single plate are both available and feature a high strength and thickness
- Electric control and automatic adjustment reduces roller changing time in an accurate, fast manner.
