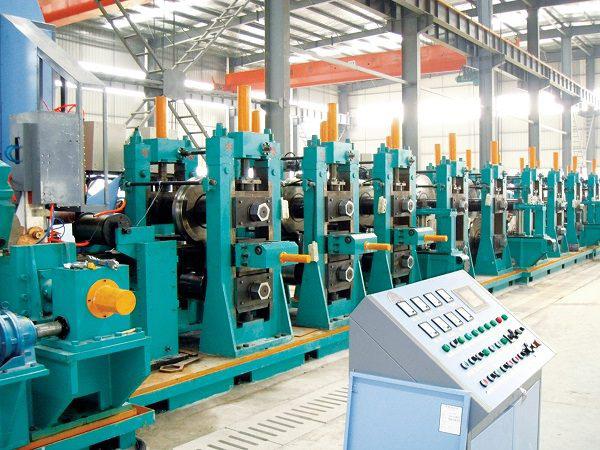

ERW337 ERW Carbon Steel Tube Mill
ERW337 electric resistance welded carbon steel pipe production line
| Product & Yield | Round Pipe | 165mm-377mm Thickness: 4.0mm-14.0mm |
| Square & rectangle tube | 130mm×130mm -280mm×280mm Thickness: 4.0mm-14.0mm | |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 35 m/min | |
| Production capacity | 120,000ton/year | |
| Consumption | Mill installed capacity | 580 kw |
| Line Area | 145m(length) ×13m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 520mm-1190mm Thickness: 4.0mm-14.0mm | |
| Coil ID | 580-760mm | |
| Coil OD | Max. 2100mm | |
| Coil Weight | 25.0t |
Advantages
- Rolls cost roughly 60% less than other comparable products.
- One set of rollers is capable of pipe production in a variety of sizes using direct square forming technology.
- Electric control and automatic adjustment reduce roller changing time in an accurate, fast manner.
